3.9V/5Ah Soft Pack High Rate Lithium-ion Battery
Tel:
Email:
Keywords:
Lithium Ion Battery
Category:
Technical Parameters
|
Item |
Criteria |
Remark |
|
Rated Capacity |
5Ah | / |
|
Nominal Energy |
19.5Wh | / |
|
Nominal Voltage |
3.9V | / |
|
Upper Limited Charging Voltage |
4.6V | / |
|
Limited Charging Voltage |
4.2V | / |
|
End of Discharge Voltage |
2.5V | / |
|
Discharge Cut-off Voltage |
2.0V | / |
|
Recommendation Discharging Current |
5A | / |
|
Maximum Charging Current |
20A | / |
|
Recommendation Charging Current |
5A | / |
|
Maximum Discharging Current |
200A | / |
|
Max. Pulse Discharge Current |
400A | 10s |
|
Upper Limited Charging Temperature |
35℃ | / |
|
Lower Limited Charging Temperature |
-10℃ | / |
|
Upper Limited Discharging Temperature |
45℃ | / |
|
Lower Limited Discharging Temperature |
-40℃ | / |
|

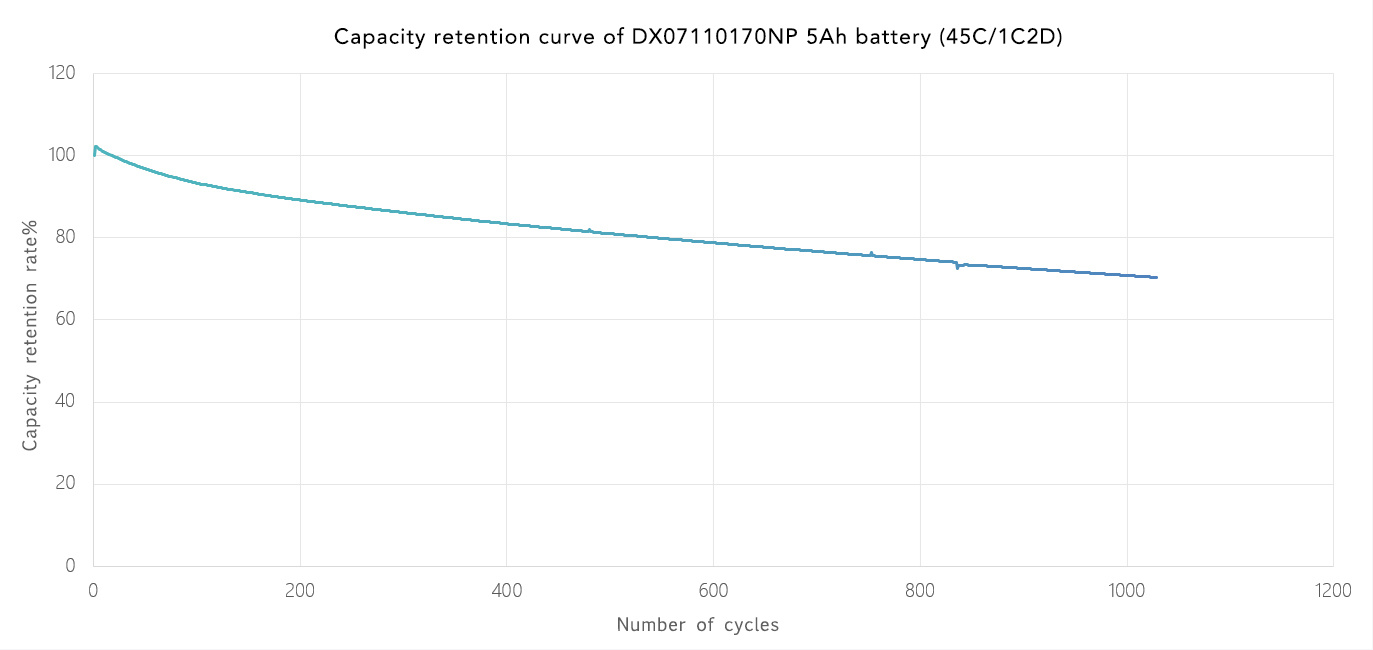

Cycle Life |
≥3000 |
Standard Charge、Standard Discharge |
| ≥300 |
Standard Charge 、Maximum Discharge |
|
|
Temperature Storage |
20℃±3℃ | / |
|
Weight |
235g±10g | / |
